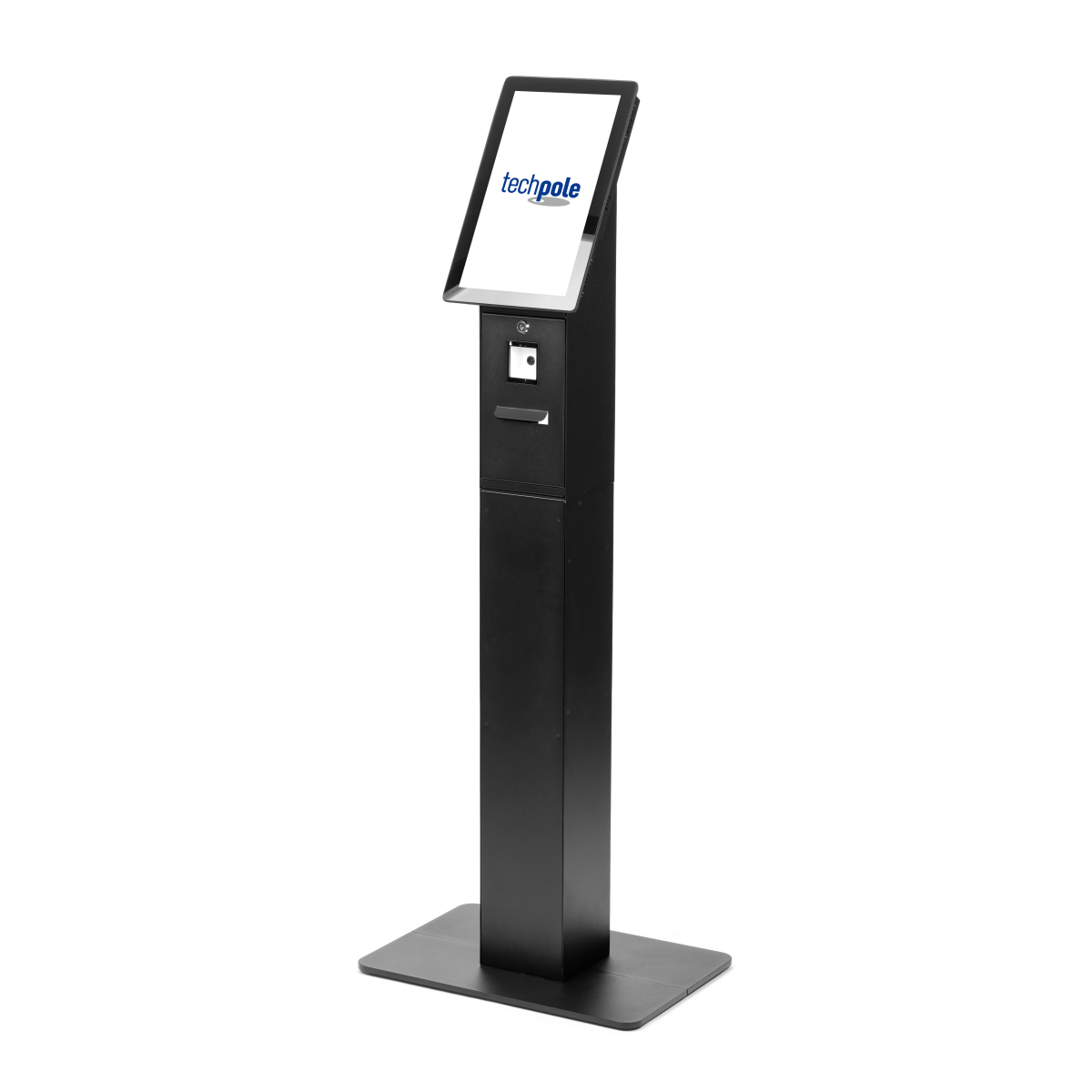

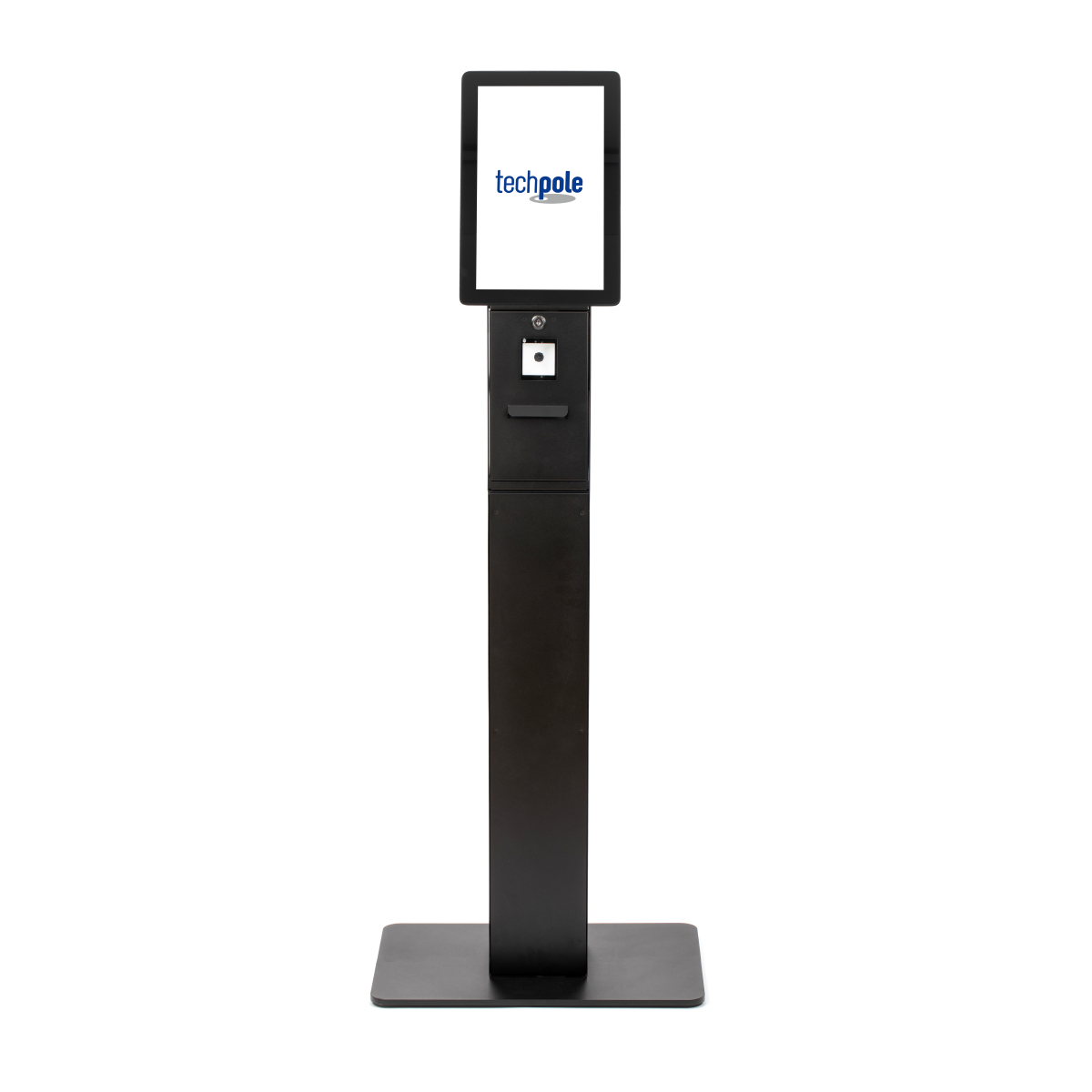

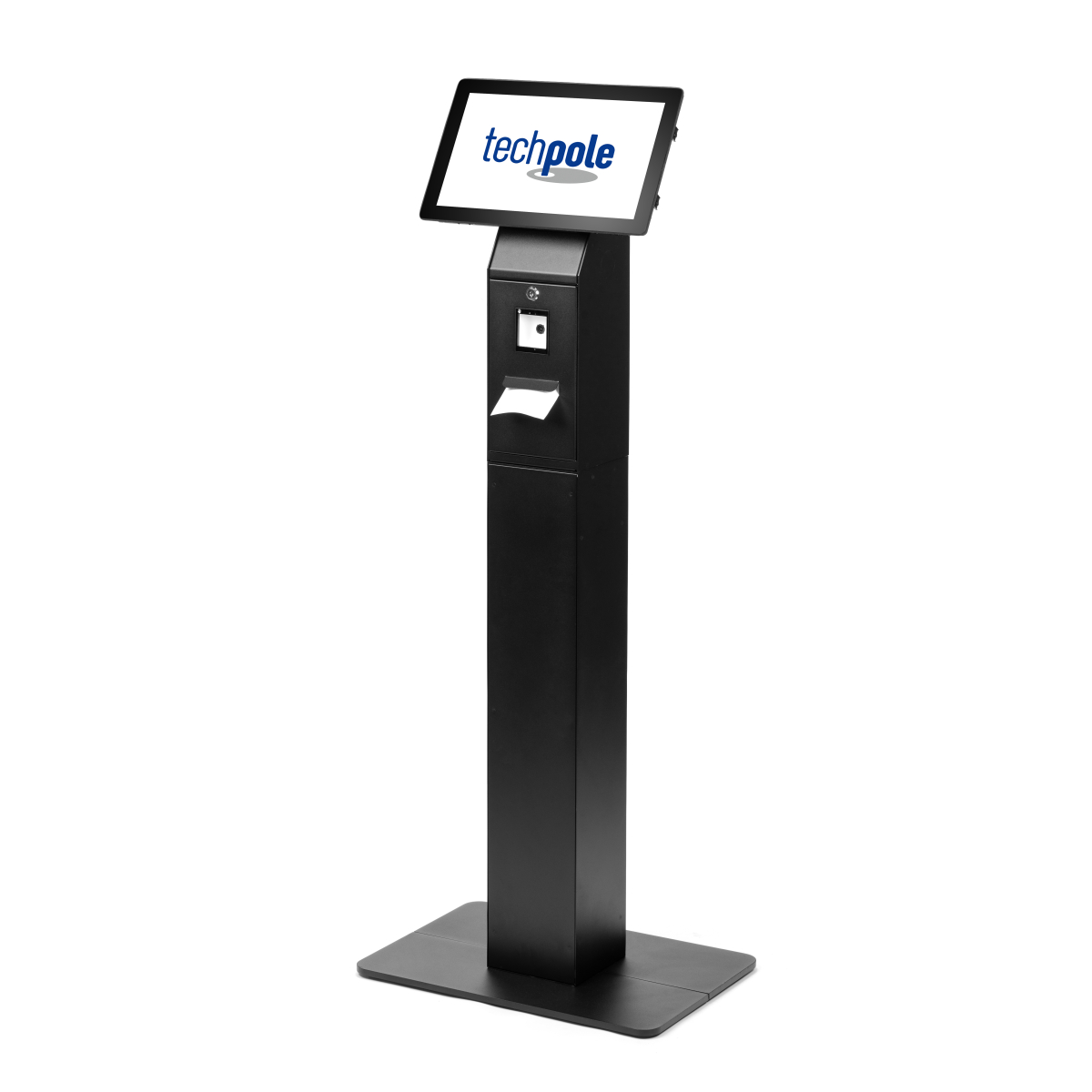

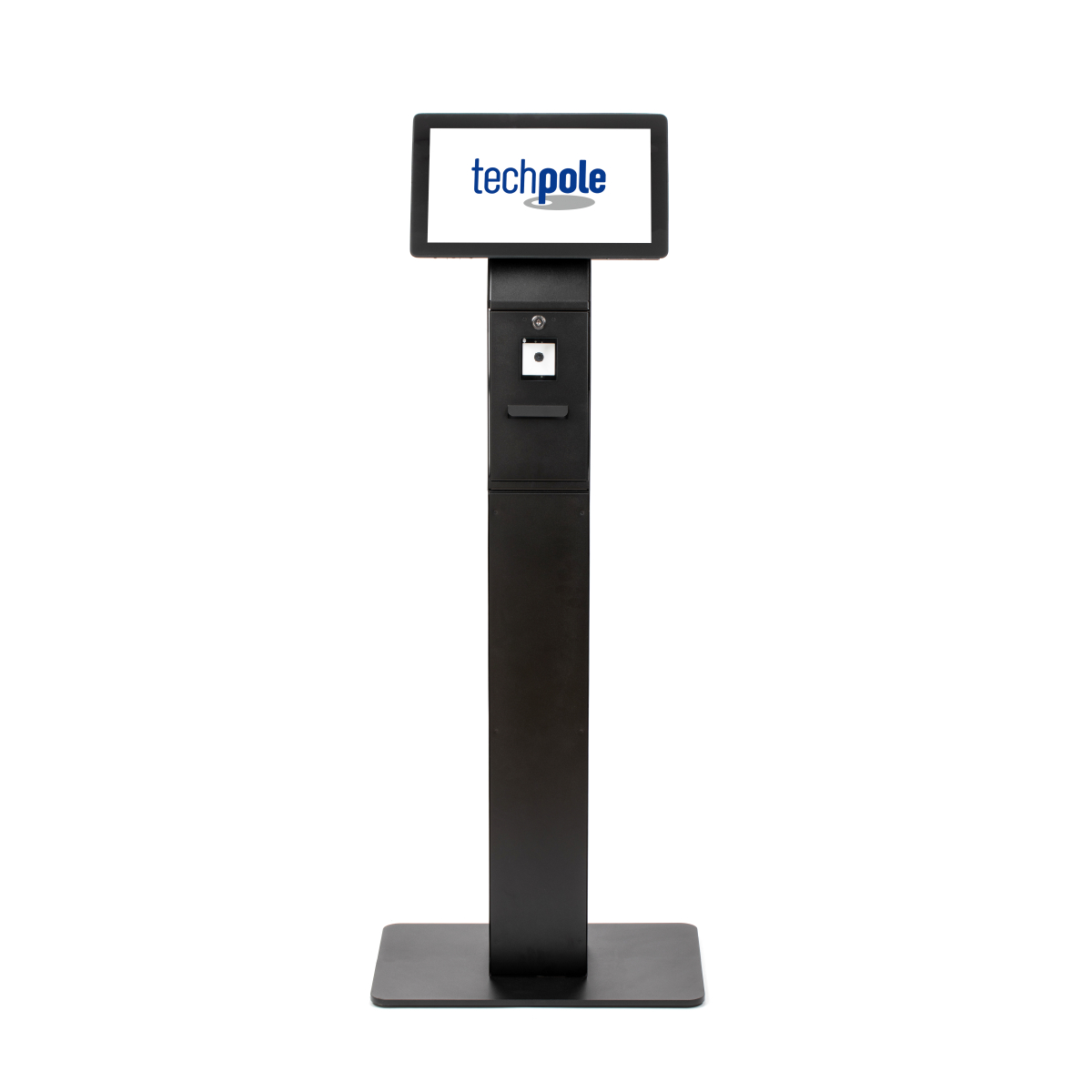

Take a Number & Check-in Kiosk - Tech K4.3 Model
The Tech K4 Kiosk is designed for queue management and check-in applications in hotels, airports, restaurants, and similar environments. Its primary function is to organize customer flow, especially during peak hours, reducing wait times and minimizing the need for dedicated staff for these tasks.
With a compact footprint, it offers flexible configuration options: it accommodates a printer with front-facing output and an internal scanner, allowing it to adapt to various use cases without requiring complex external modifications.
What you need to know about the Take a Number & Check-in Kiosk - Tech K4.3 Model
TRUNK DIMENSIONS
- Total Height: 1366 mm – designed for standing operation.
- Screen Tilt: 30° tilt for comfortable viewing angles.
- Upper Section: 534.3 x 160 x 160 mm.
- Lower Section: 832 x 160 x 160 mm.
- VESA 100 mounting standard for touch monitors.
- Compatible with monitor sizes from 15" to 21" (shown here with a 15" model).
- Integrated holder for a handheld scanner.
- Optional: Side-panel mounted arm for handheld scanner.
- Printer is securely housed internally with front paper output.
- Kiosk can be customized to accommodate various printer sizes.
- Printer paper rolls are accessible and replaceable via the front locking door.
- Both printer and scanner are protected within the trunk interior.
- Access to printer and scanner is provided through the main kiosk door with lock.
- Dimensions: 14.95 x 53.43 cm.
- Removable rear cover allows easy access for cable management of peripherals.
- Interior trunk offers ample space for a mini PC and power supplies.
- Scanner holder is fixed to the rear plate.
- Additional cable outlet hole located at the bottom of the rear cover.
- Rear cover is secured to the kiosk with screws.
- Square metal base: 540 x 370 mm.
- Central cable routing hole (5 cm diameter) for tidy cable management.
- Equipped with non-slip rubber feet.
- Base weight provides excellent stability.
