Self-Ordering and Self-Payment Kiosk - Tech K5.1 Model
The Self-Ordering and Self-Payment Kiosk - Tech K5.1 Model has a universal tablet, thermal printer and payment terminal mounts. The wiring of the devices are protected inside the mount. This kiosk can be bolted to the counter and has anti-scratch rubber stops at the base. This mount is made of high quality steel in the European Union by Techpole Solutions.
What you need to know about the Self-Ordering and Self-Payment Kiosk - Tech K5.1 Model
- Adjustable grips that secure the tablet in place. (minimum and maximum extension of the grips):
- Minimum and maximum height: 215 to 270 mm.
- Minimum and maximum width: 145 to 190 mm.
- Guide thickness max: 7 mm.
- It has a 330º rotation, 180º tilt and vertical and horizontal screen orientation.
- Measures:
- External base dimensions : 200 x 274 mm.

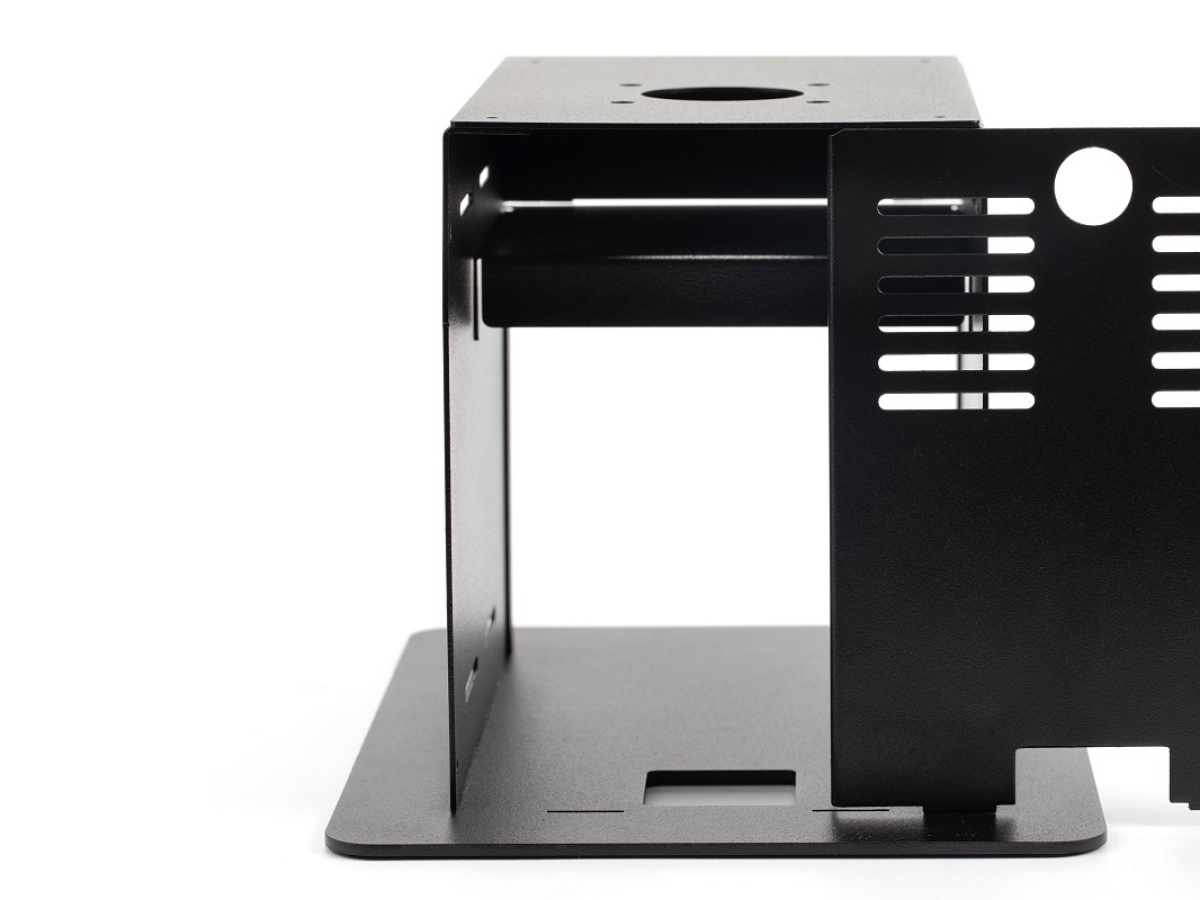

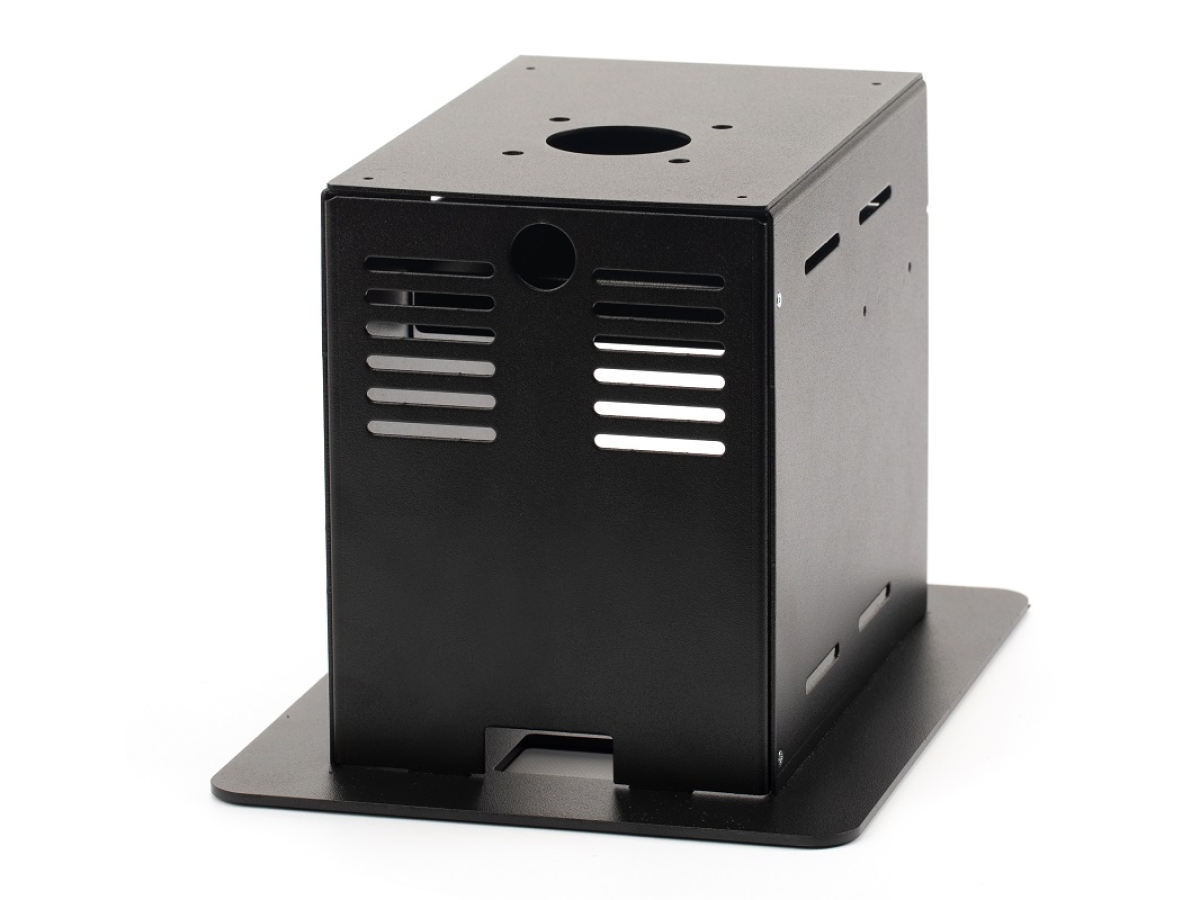

- Metal box dimensions : 140 x 208 x 185 mm (width x depth x height).
- Interior dimensions : 133 x 125.1 x 134 mm (width x depth x height).
- Wire storage and power adapters.
- Interior shelf for the power adapter.
- Double wiring exit, at the rear and bottom.
- Adjustable grips to fit any payment machine
- Width: 64.5mm - 141.5mm.
- Length: 166mm - 202mm.
- Tablets: Samsung Galaxy TAB series, iPad, Lenovo, HP, Microsoft surface, Huawei and Xiaomi.
- Printers: Epson TM -M30, SAM4S GCUBE, Bixolon SRP-Q200/ Q300 /Q300H/ Q300B, FEC TP100, SNBC M-300, CITIZEN CT-E351 / E651 / E651L / S751, POSIFLEX AURA PP-7600 / 7600X, STAR mC -Print2 / Print3 / Print31
- Payment terminals: Ingenico-Worldline, Verifone, Pax, Spire, Miura and Castles. For the Ingenico Lane 3000/5000/7000/8000 series we have a special support as well as for the APOS A8 and DX 8000 model
